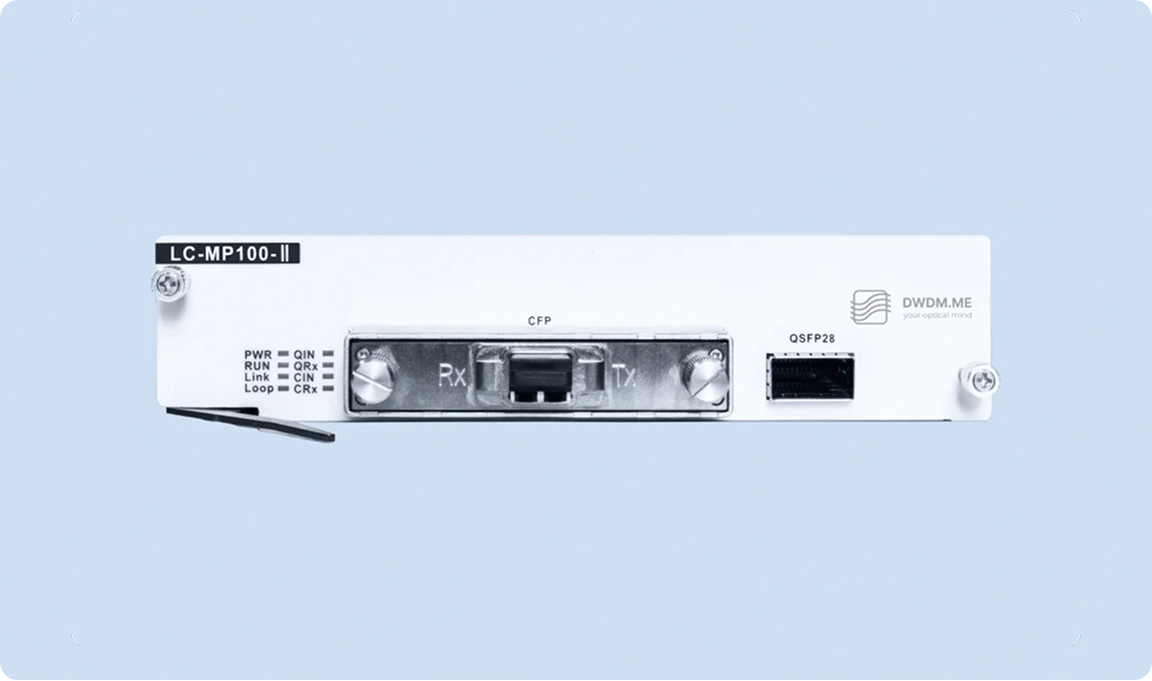

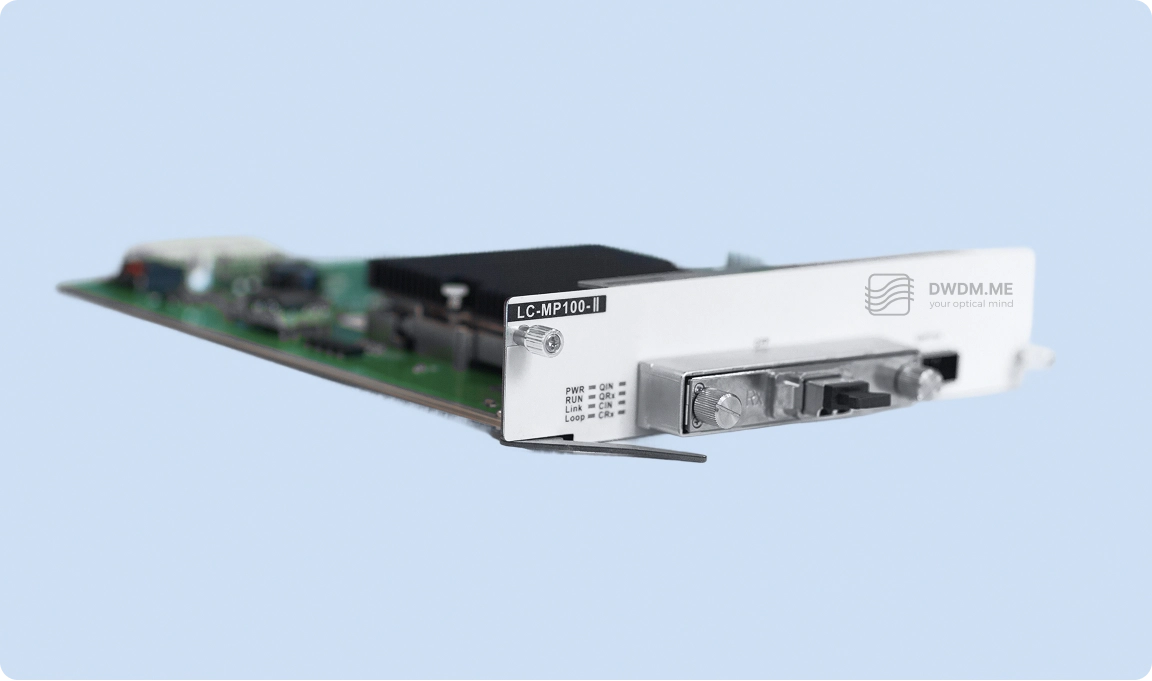

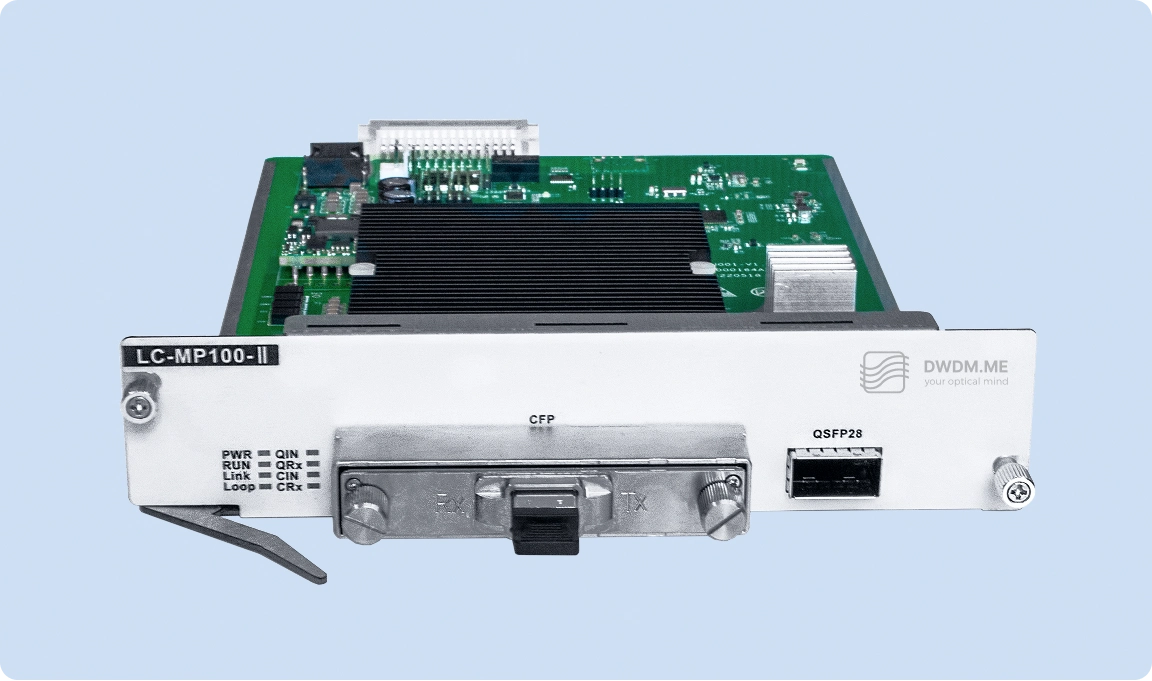

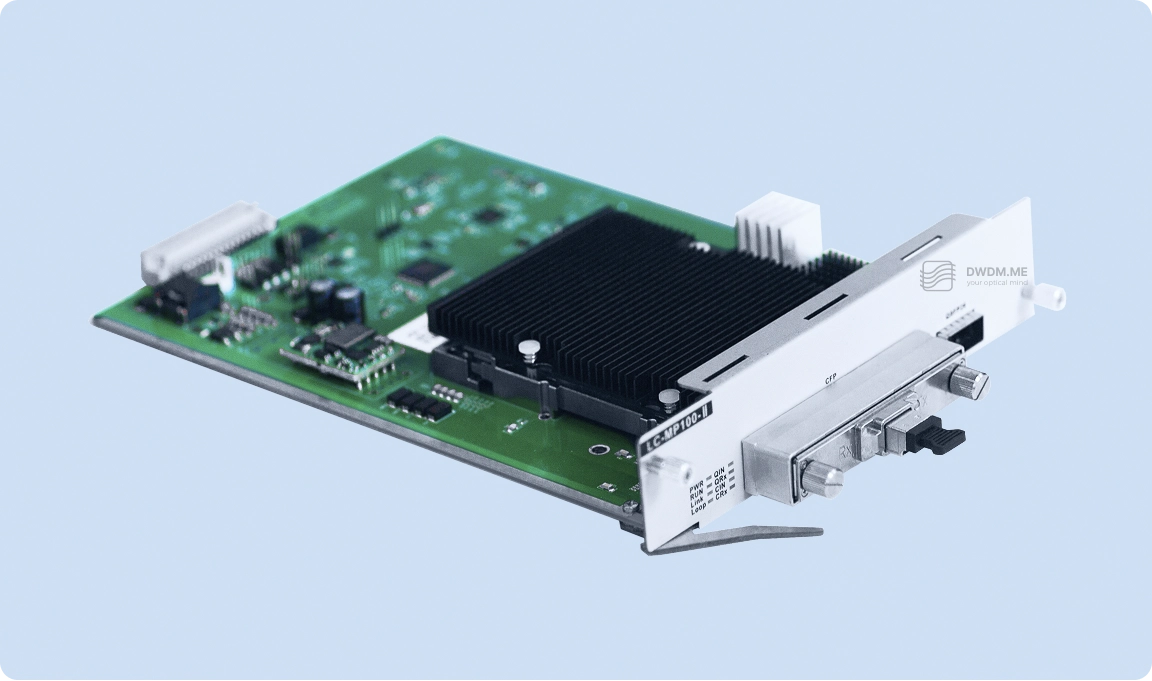

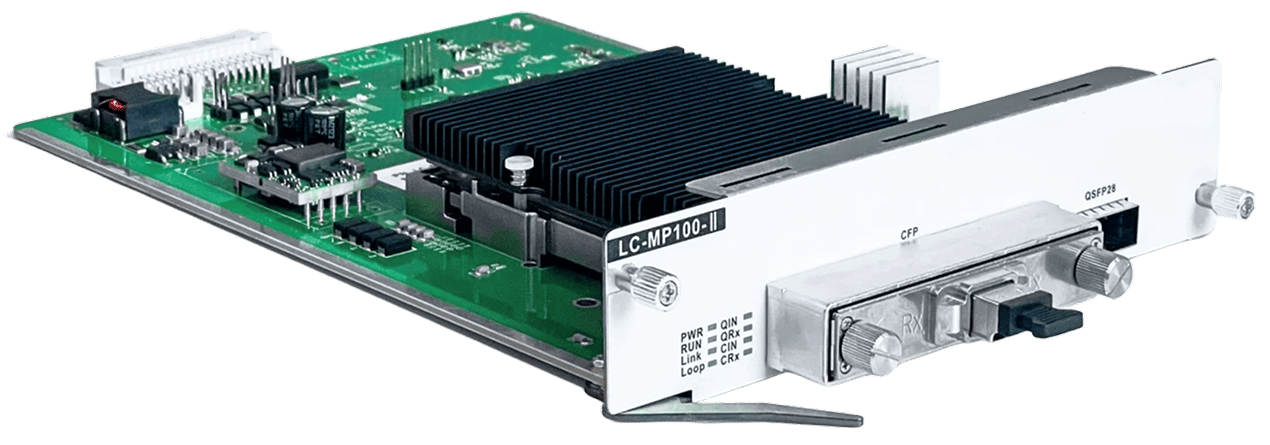

LC-MP100-II Transponder Service Card 100G QSFP28 to CFP-DCO

The 100G OTN Transmitter supports one QSFP28 client interface and one CFP line-side interface to support single-channel 100Gbps large-grain data transfers. The industry’s most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission.

Contact Sales Learn more...

DWDM.ME’s 100G Transponder includes integrated OTN FEC capability on the transponder, allowing operation over longer distances or in applications requiring ultra-low bit error rates.

The 100Gbps Transponders offer a choice of pluggable QSFP28 Client side optics and CFP Coherent DWDM line side optics based on distance and capacity requirements.

The Coherent DWDM Optics are the most technologically advanced and offer benefits on dispersion management, signal reach, and other optical properties. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 100G Transponder models fit for MU Series MU-70-ACDC, MU-180-ACDC, MU-380-ACDC Chassis.

Product documentation Check out documentation to learn more: MU-series DWDM Datasheet

Performance Parameter

Center Wavelength DWDM 1529.5~1565.50nm

Data Rate (Gbps) 100Gbps

100G Interface Client Side QSFP28 module

100G Interface Line Side CFP 100Gbps coherent module

FEC (Gain, Delay, BER Threshold) GFEC 6.2dB, 1.2µs, 8.5e-2

FEC (Gain, Delay, BER Threshold) 100GE-SDFEC-LOW-LATENCY-SD2 10.6dB, 9.4µs, 1.40e-2

FEC (Gain, Delay, BER Threshold) 100GE-SDFEC-LH-SD2 9.4dB, 7.9µs, 1.01e-2

FEC (Gain, Delay, BER Threshold) 100GE-SDFEC-LOW-LATENCY-SD0 10.8dB, 9.4µs, 1.56e-2

NMS TELNET, SNMP, WEB

Size 191 (W) x 253 (D) x 42 (H) mm

Environment Operating Temperature -10℃ ~ 60℃

Environment Storage Temperature -40℃ ~ 80℃

Environment Relative Humidity 5% ~ 95% Non-condensing

Power Consumption ≤50W

Function

Media conversion
Signal repeating
Lambda conversion

Highlight

Support single channel 100Gbps
Client side: QSFP28 module
Line side: CFP 100Gbps coherent module
Ultra-long-distance transmission: FEC technology can be used to achieve 1500km transmission without regeneration
Large dispersion tolerance: 40000ps.nm
Support port loopback test
Support 80 channel wavelength tunable

Get in Touch for Exclusive Sales Offers

FAQ

What is the LC-MP100-II transponder used for?

The card is designed for 100Gbps data transmission, providing signal conversion between the QSFP28 client interface and the CFP-DCO line interface for DWDM networking.

What is the maximum transmission distance supported by the device?

Utilizing coherent technology and Forward Error Correction (FEC), the transponder enables signal transmission up to 1,500km without the need for regeneration.

Which chassis is this model compatible with?

The LC-MP100-II transponder is designed for use with MU Series chassis, specifically the MU-70, MU-180, and MU-380 models.

What are the benefits of the integrated FEC support?

FEC technology corrects transmission errors, enabling ultra-low bit error rates (BER) and significantly extending the reach in optical networks.

What are the key features of the Line Side port?

It uses a 100Gbps coherent CFP module that supports 80-channel wavelength tuning and high dispersion tolerance (up to 40,000 ps/nm).

How is the transponder managed remotely?

The device supports standard Network Management Systems (NMS) via SNMP, TELNET, and a WEB interface for real-time monitoring.
