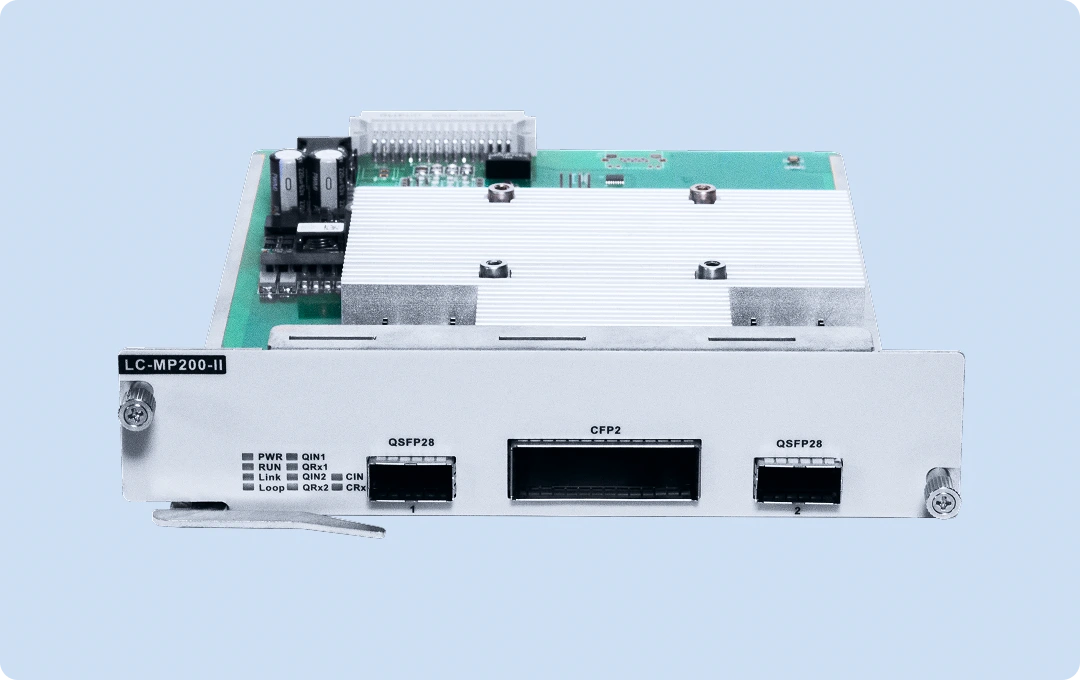

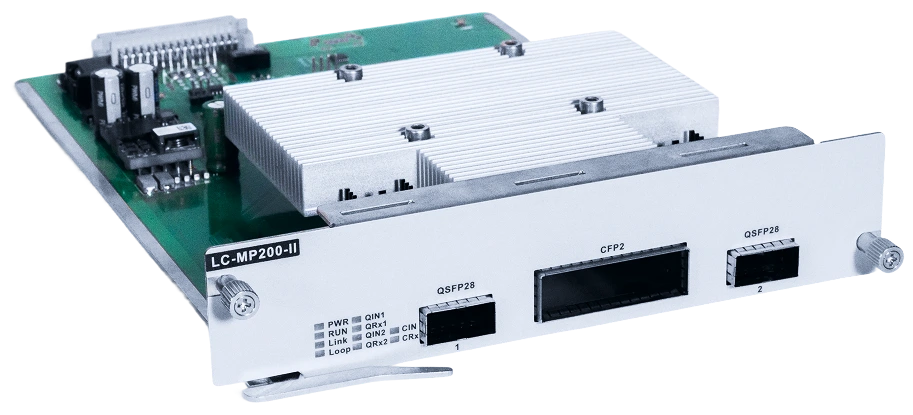

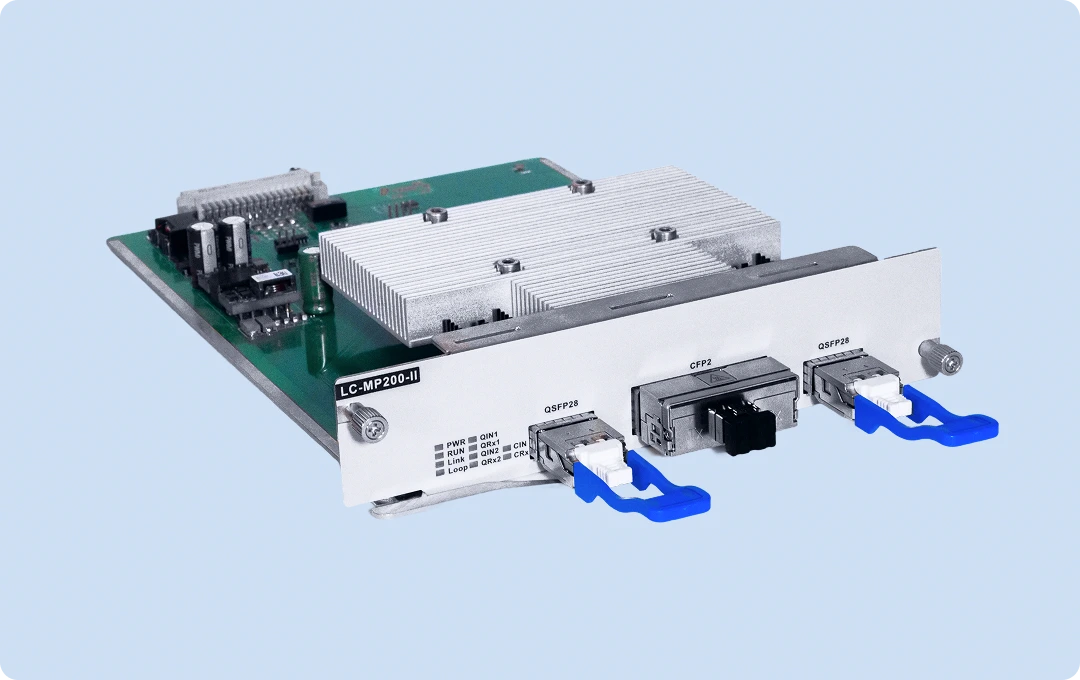

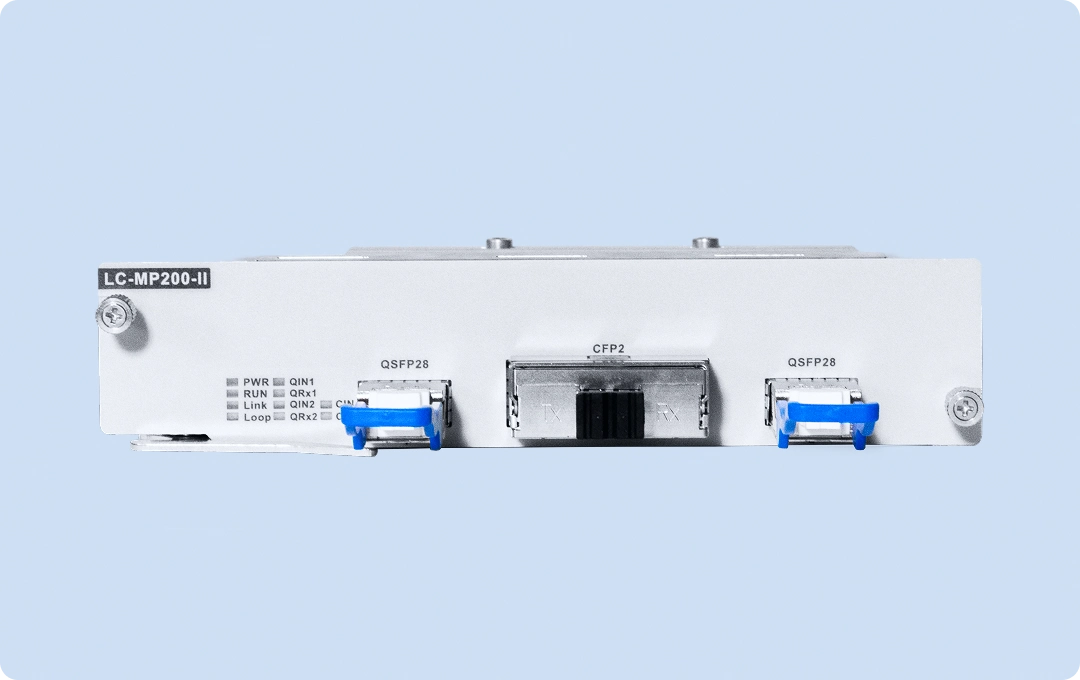

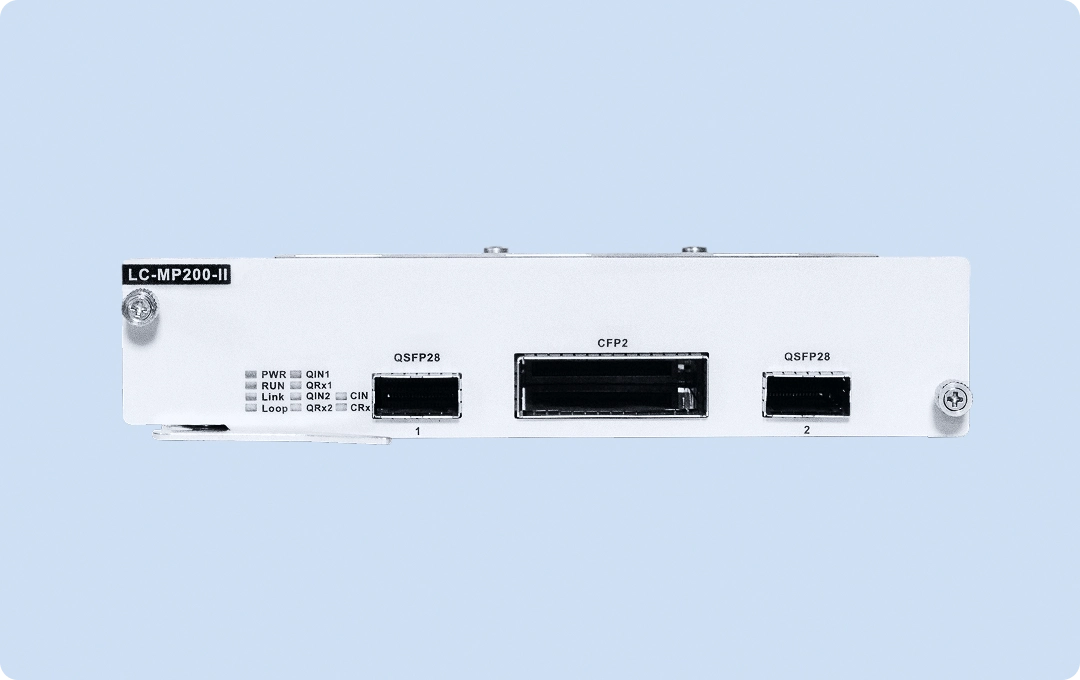

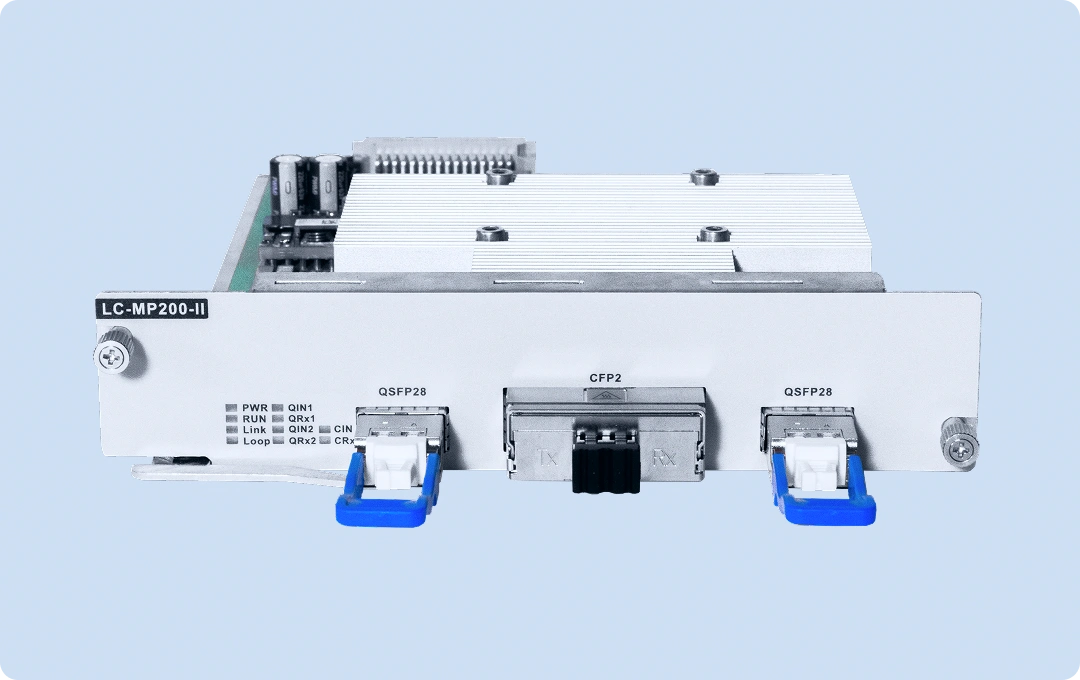

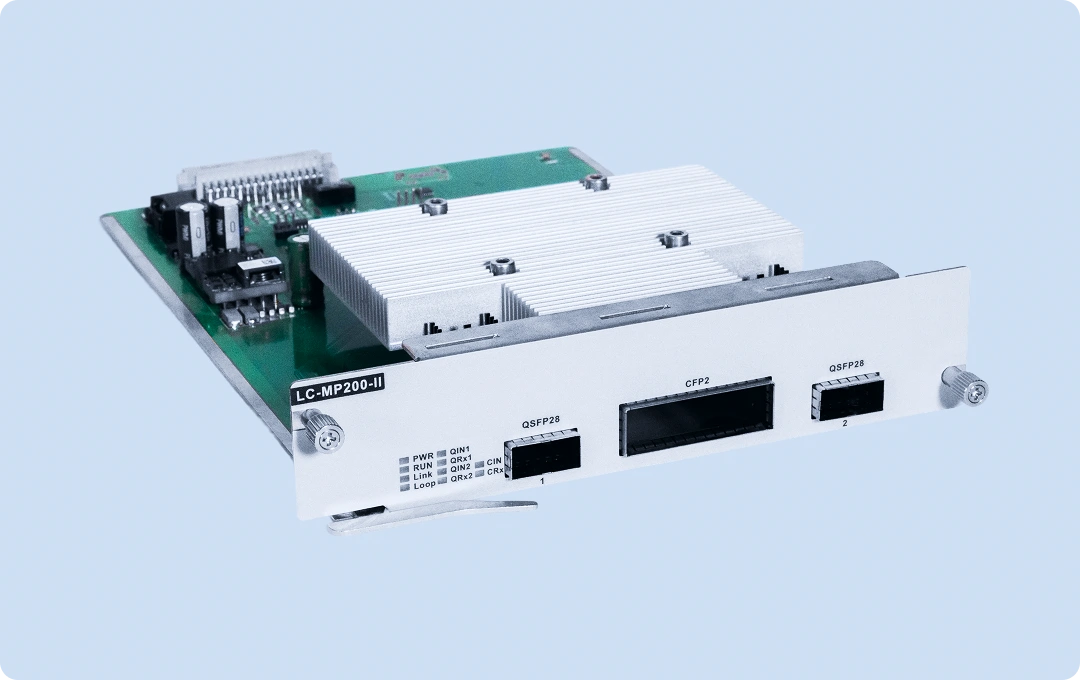

Muxponder Service Card LC-MP200-II- 200G (2xQSFP28 to CFP2-DCO)
The 200G Muxponder Transmitter supports two QSFP28 client interface and one CFP2 line-side interface to support single-channel 200Gbps large-grain data transfers. The industry’s most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission.
DWDM.M’s 200G Muxponder includes integrated OTN FEC capability on the transponder, allowing operation over longer distances or in applications requiring ultra-low bit error rates.
The 200G Muxponder offer a choice of pluggable QSFP28 Client Side Optics and CFP2-DCO Coherent DWDM Line Side Optics based on distance and capacity requirements.
The Coherent DWDM Optics are the most technologically advanced and offer benefits on dispersion management, signal reach, and other optical properties. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 200G Muxponder models fits for MU Series MU-70-ACDC, MU-180-ACDC, MU-380-ACDC Chassis.
Performance Parameter
Function
- Media conversion
- Signal repeating
- Lambda conversion
Highlight
-
Support single channel 200Gbps -
Client Side: 2x QSFP28 module
-
Line Side: CFP2 200Gbps coherent module
-
Ultra-long-distance transmission: FEC technology can be used to achieve 1500km transmission without regeneration -
Large dispersion tolerance: 40000ps.nm -
Support port loopback test
-
Support 80 channel wavelength tunable
