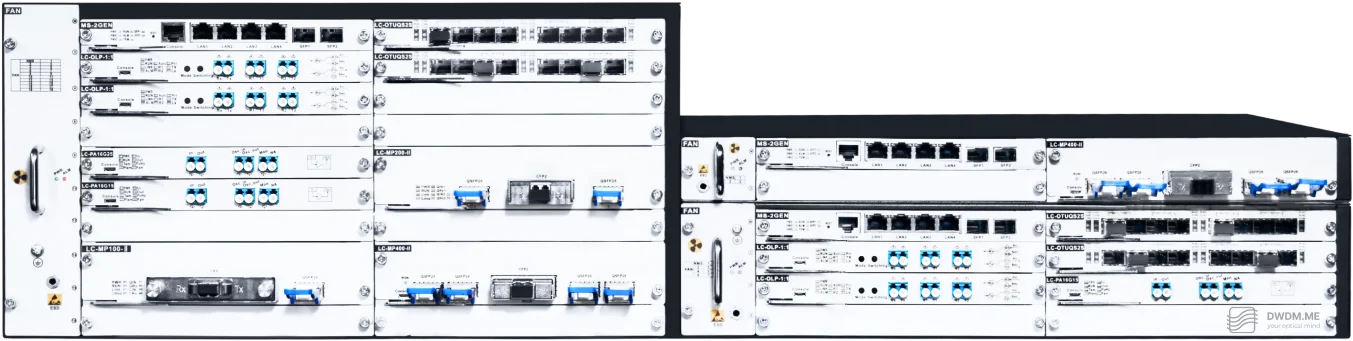

MU Series Data Transmission Platform

High-performance and cost-effective data transmission platform using DWDM technology that not only increases network bandwidth, but also maximises the use of optical fibre resources, minimising the loss of network resources
Icon
Easy to operate and maintain
Icon
Allows transmission of up to 96 channels over a pair of optical fibers
Icon
Provides fast and flexible access to the full functionality of the platform
Icon
Support SNMP, Web, Telnet management; remote management with OSC, real-time monitoring
Icon
The platform is suitable for backbone, metro fibre and data centre connectivity
Icon
Built-in high reliability protection

Discover our product

The DWDM.ME high-capacity transmission platform delivers high throughput in terabits and can be used at various network layers, including national, regional and backbone networks. It is the most cost-effective transmission solution in its industry. The DWDM.ME platform is a high-capacity solution based on WDM (wave division multiplexing) technology, providing granular data transmission with high efficiency and reliability

DWDM.ME’s generation

DWDM.ME high capacity data transmission platform provides high bandwidth (more than 1.6 terabits) and can be used in various types of networks, including national, regional and backbone networks. It is the most cost-effective data communications solution in its industry

    learn more about our product

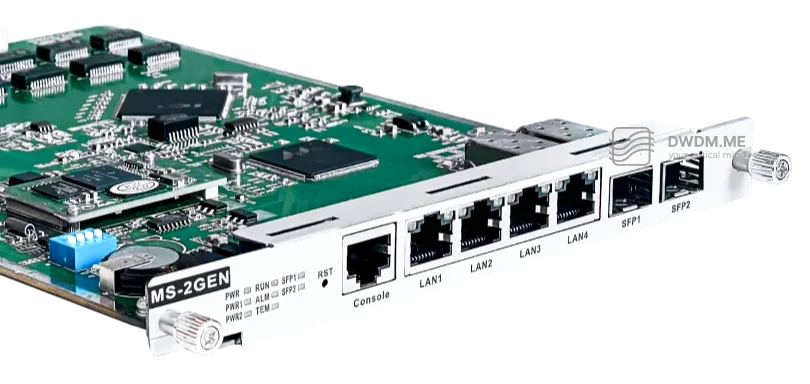

    MS-2GEN - Management Card

    Provides online control and monitoring of the entire WDM system

    Uses 1510nm wavelength, supporting maximum transmission range of 40dB

    Supports CLI, Telnet, SNMP, Web and other network management types

    Supports device-to-device IP communication functions to realise integrated multi-device management

    Provides graphical information management: topology, positioning on an electronic map, which is convenient for rapid service deployment, fault detection and maintenance cost saving

    More about MS-2GEN and other control cards

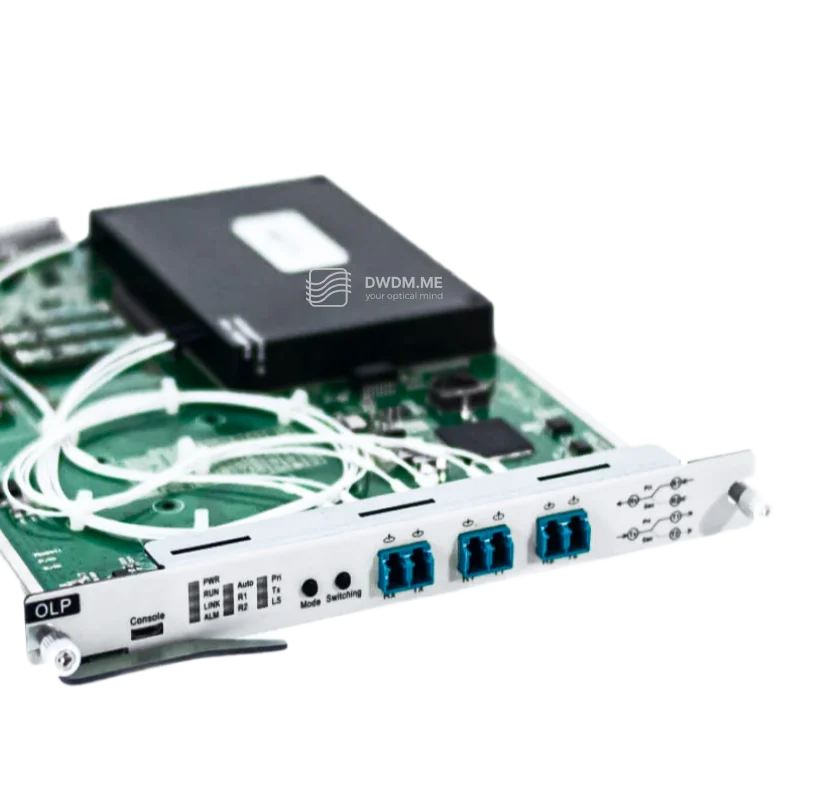

    LC-OLP optical line protection board

    The LC-OLP optical line protection board is used to switch between the primary and backup optical routes, ensuring reliable operation and protection against loss of connectivity in case of failure.

    High switching speed <30 ms, which reduces link interruption time and improves service efficiency

    Low insertion loss: 1+1≤4dB, 1:1≤1.5dB. Manual or automatic switching mode can be set

    Randomly send active and standby working routes to ensure the smooth operation of the enterprise, without the need to manually send to ODF, which is very convenient, safe and time-saving

    Real-time monitoring of fibre quality and optical power levels on active and standby links

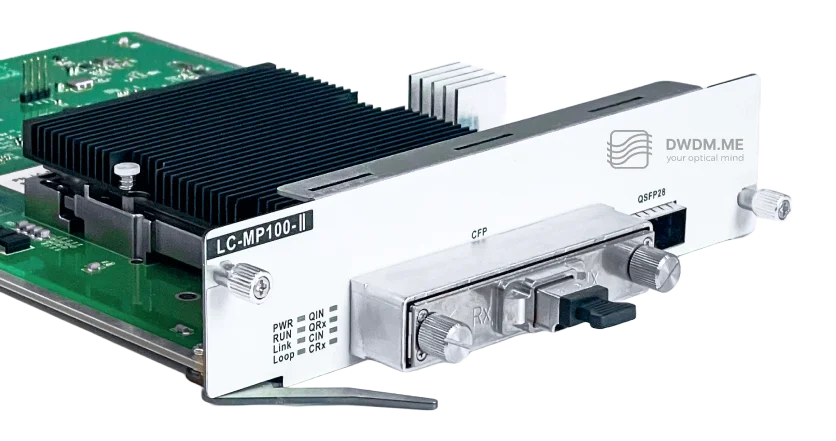

    Transponder service board LC-MP100-II

    Using coherent and DSP processing technology, the LC-MP100-II Transponder Service Board solves the problems of high-speed transmission systems for OSNR compliance, chromatic CD immunity, intermode PMD dispersion and nonlinear physical transmission effects.

    Provides large capacity and high bandwidth for coherent 100G network transmission system

    Supports single-channel transmission of large packets at 100Gbps

    Provides ultra-long distance transmission with FEC direct error correction coding technology to enable 1500 km transmission without electrical recovery

    Coherent wave and high-performance DSP processing technologies enable links up to 1500 km without dispersion compensation

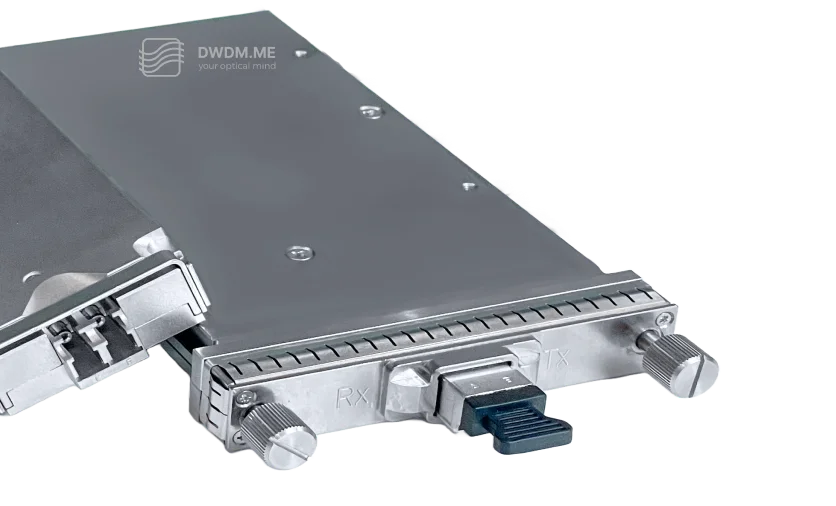

    Coherent optical module 100G CFP2

    Coherent 100G CFP2 (DCO) optical module designed for dual fibre optical cable.

    The minimum guaranteed optical budget of the module is 18.5 dB, however with signal amplification the module can reach up to 2000 km (100 Gbps)

    Supports DP-QPSK (dual polarisation quadrature phase-shift keying) for 100Gbps

    Has flexible client interfaces to support OTL4.4 signalling for OTU4 with G.709 FEC and OTU4/ODU monitoring, CAUI-4 signalling for 100G Ethernet with RMON counter module.

    Built-in generator and Line & Client PRBS verification tool that can help diagnose and test link status

    LC-MP400-II muxponder service board

    The LC-MP400-II – 400G muxponder service card supports electrical layer multiplexing/demultiplexing in two modes: 4x100G↔400G, providing aggregation of 4 100G channels into a single 400G channel or 2x100G↔200G, providing aggregation of 2 100G channels into a single 200G channel.

    With state-of-the-art coherent and DSP processing technology, 400G channel transmission is achieved, eliminating the challenges of high-speed transmission systems to meet OSNR, chromatic
    dispersion and intermode dispersion immunity, and nonlinear physical effects of optical signal transmission requirements

    Very long distance transmission capability with FEC technology, achieves 1000 km transmission without electrical signal recovery.

    Large dispersion tolerance: 20000ps.nm

    Support for 80 channels with wavelength tunability

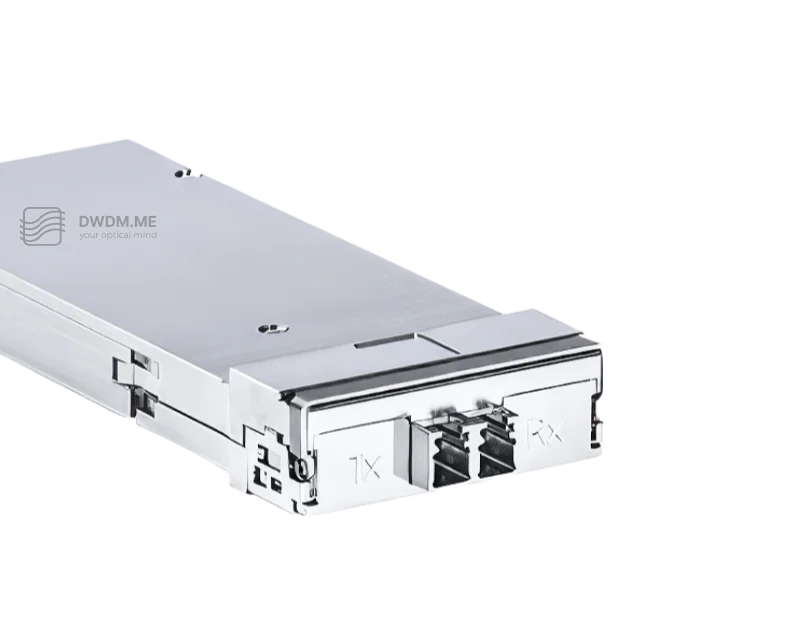

    Coherent optical module 400G CFP2

    Multi-speed host interface compatible with IEEE Ethernet or ITU-T OTN/FlexO

    Transmission range up to 1000 km at 400G, with extended range at 200G (2000 km) and 100G (5000 km)

    On the host side, accepts various signal types including 100GE, 200GE, 400GE, OTU4 and OTUCn (FlexO)

    Optional Layer 1 encryption (AES-256

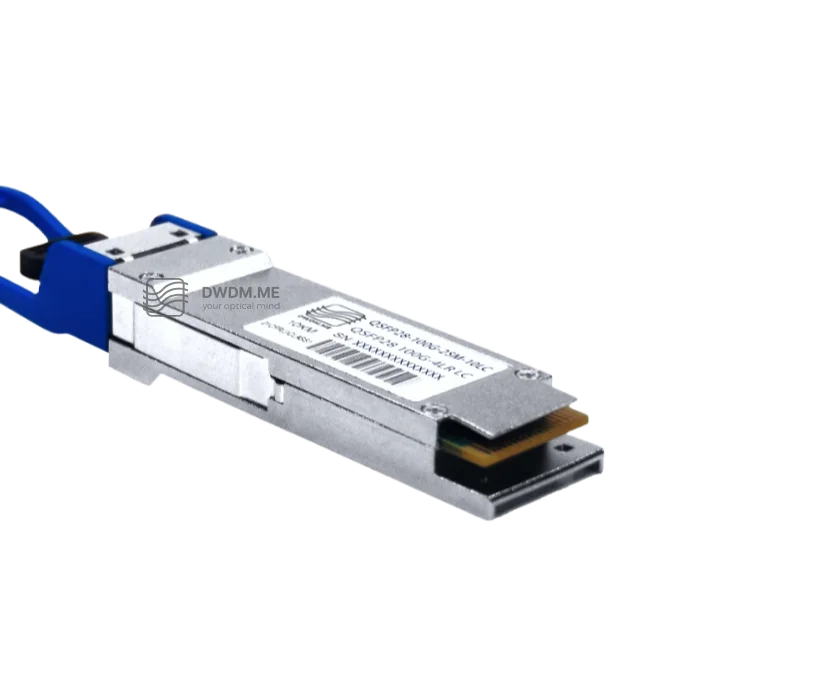

    QSFP28 100G optical module

    The QSFP28 is a compact single-mode transceiver designed to operate at 100Gbps.

    The technology used is 2 SM (Two Single Mode)

    Operating range 10 km

    Duplex LC connector

    TX wavelength, nm 1295.56, 1300.05, 1304.58, 1309.14

    Transmit power -7.6~2.4 dBm

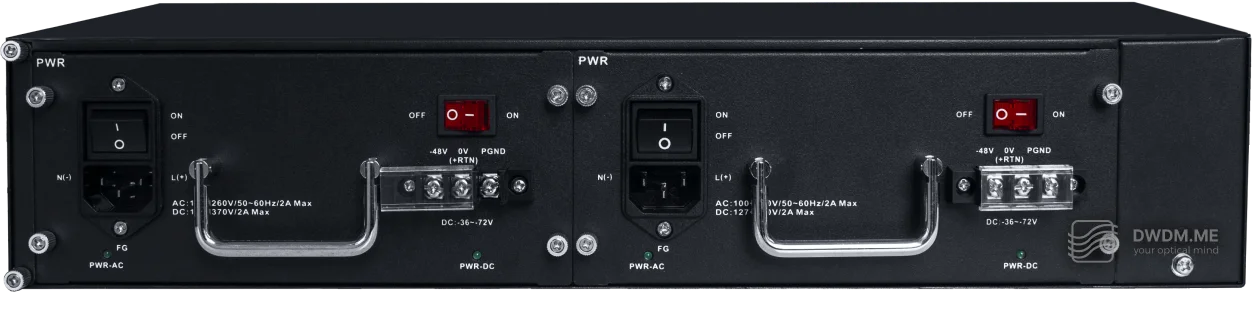

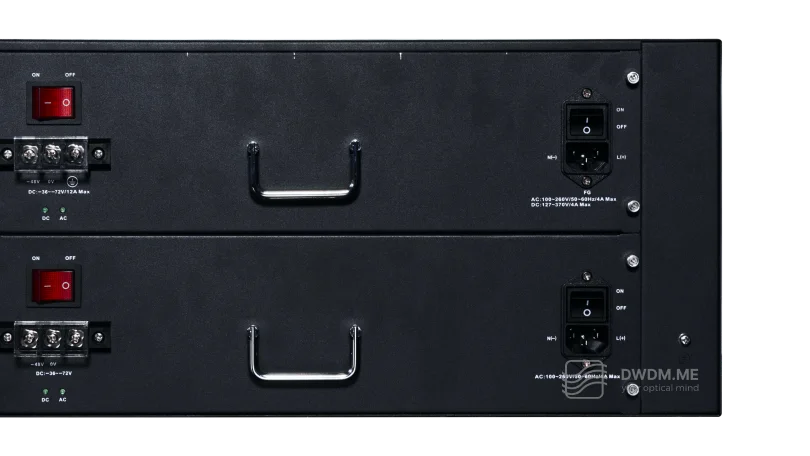

    Power supply


    Icon

    Redundancy and fault tolerance: modular design of the power supply supports both AC and DC power supply connectivity with redundant power supplies of each type.


    Icon

    Surge and EMI protection: power supply is equipped with protection mechanisms to prevent damage to connected equipment in the event of surge and EMI.


    Icon

    Power Management: power supply is equipped with power management functions that can adjust the power supply according to the current system load.

    Power supply


    Icon

    Redundancy and fault tolerance: modular design of the power supply supports both AC and DC power supply connectivity with redundant power supplies of each type.


    Icon

    Surge and EMI protection: power supply is equipped with protection mechanisms to prevent damage to connected equipment in the event of surge and EMI.


    Icon

    Power Management: power supply is equipped with power management functions that can adjust the power supply according to the current system load.

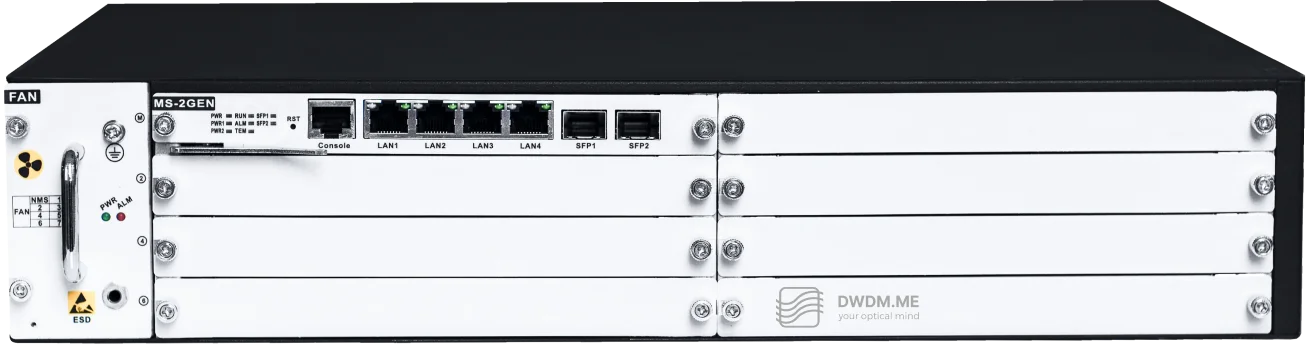

    High integration and support for advanced technologies

    MU Series transmission platforms support advanced transmission and high integration technologies with these advantages:


    Icon

    High Throughput: ability to transmit over multiple wavelengths (frequencies) simultaneously, greatly increasing the capacity of fibre optic networks.


    Icon

    High Capacity: ability to handle and transmit large amounts of data.


    Icon

    Long-Haul Transmission: enables efficient transmission over long distances without significant signal loss.


    Icon

    Configurability: ability to customise transmission parameters to meet individual network requirements.

    Unified platform

    Supports mixed installation of different service cards and centralised network management. The MU Series platform provides modularity, flexibility in line card settings, and easy management of resources to improve the efficiency of network operations.

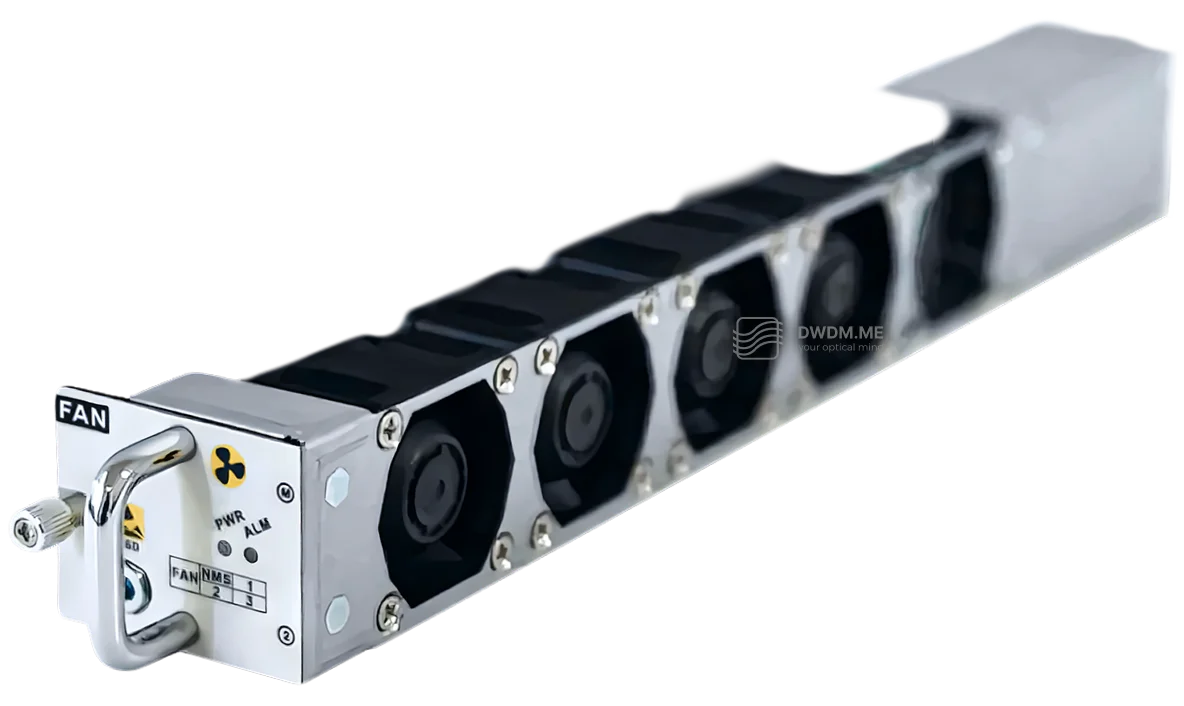

    High cooling system efficiency

    The air cooling system consists of fans, whose operation keeps the switching platform at an optimal temperature, preventing overheating and ensuring stable operation. Automatic fan speed adjustment according to equipment temperature or load, contributing to more efficient cooling management and reduced power consumption

    High reliability


    Icon

    Redundancy and fault tolerance: modular design of the power supply supports both AC and DC power supply connectivity with redundant power supplies of each type.


    Icon

    Surge and EMI protection: power supply is equipped with protection mechanisms to prevent damage to connected equipment in the event of surge and EMI.


    Icon

    Power Management: power supply is equipped with power management functions that can adjust the power supply according to the current system load.

    Ultra-large Capacity Intelligent Transmission Platform

    MU-70-ACDC - 1U chassis

    Іs a 4-slot 1U carrier-grade chassis with a redundant AC/DC power supply and fan unit.
    • Icon
      Support 10G/100G/200G/400G hybrid transmission
    • Icon
      Standard 1U, 19″, 4 slots
    • Icon
      Unified platform: supports mixed
      installation of different service cards and
      unified network management
    • Icon
      One rack supports multiplexing and
      demultiplexing up to 3×16 wavelengths;
      forwarding services up to 12x10G,
      1x100G, 1x200G

    High reliability: modular power supply design, plug and play support, 1+1 dual power supply protection

    Possibility to install power supply units: 2xDC -48V, 2xAC 220V or duplicated DC and AC

    Power consumption: full set <100W

    Dimensions (W x H x D) 482.5× 44.5× 320 mm

    Read more Hide

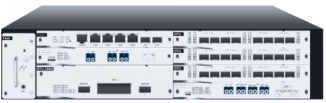

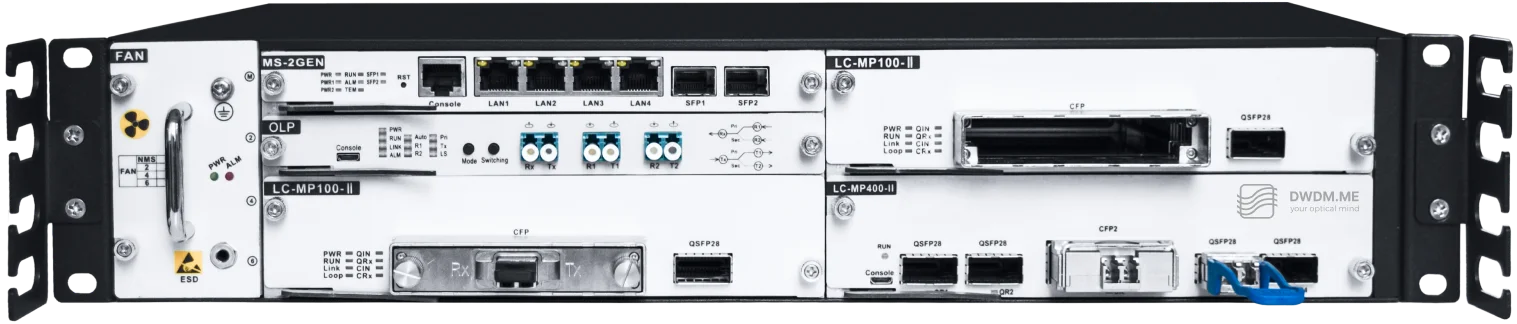

    MU-180-ACDC - 2U chassis

    Is an 8-slots 2U carrier-grade chassis with redundant power supply (AC/DC) and fan unit.
    • Icon
      Support 10G/100G/200G/400G hybrid transmission
    • Icon
      Standard 2U, 19″, 8 slots
    • Icon
      Unified platform: supports mixed installation of different service cards and unified network management
    • Icon
      One rack supports multiplexing and demultiplexing up to 7×16 wavelengths, service forwarding up to 28x10G, 4x100G, 4x200G

    High reliability: modular power supply design, support for plugging and unplugging, 1+1 dual power supply protection

    Possibility to install power supply units: 2xDC -48V, 2xAC 220V or duplicated DC and AC

    Power consumption <200W (complete)

    Dimensions (W x H x D) 482.5× 89×350 mm

    Read more Hide

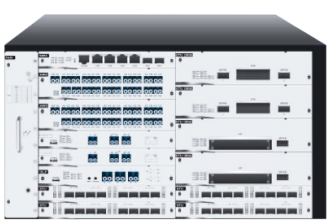

    MU-380-ACDC - 5U chassis

    Is a 20-slot 5U carrier-grade chassis with a redundant power supply (AC/DC) and fan unit.
    • Icon
      Support 10G/100G/200G/400G hybrid transmission
    • Icon
      Standard 5U, 19″, 20 slots
    • Icon
      Unified platform: supports mixed installation of different service cards and unified network management
    • Icon
      One rack supports multiplexing and demultiplexing up to 19×16 wavelengths, forwarding services up to 76x10G, 9x100G, 9x200G

    High reliability: modular power supply design, support for plugging and unplugging, 1+1 dual power supply protection

    Possibility to install power supply units: 2xDC -48V, 2xAC 220V or duplicated DC and AC

    Power consumption<500W (in full set)

    Dimensions (W x H x D) 482.5× 222.5×350 mm

    Read more Hide

    Product Certification

    Fulfils the requirements of the Low Voltage Directive 2014/35/EU

    The MU-380-ACDC, MU-70-ACDC, MU180-ACDC data transmission platforms have certificates of conformity to the Electromagnetic compatibility (EMC) 2014/30/EU of EC technical means.

    EMC testing ensures that equipment meets EMC standards to minimise the impact of electromagnetic fields on devices and ensure reliable operation in a variety of environments. Passing EMC not only ensures that products meet regulatory requirements, but also identifies and eliminates possible sources of electromagnetic interference that can affect the operation of other devices in the same electromagnetic environment. Compliance with EMC standards contributes to the creation of high-quality products, which ultimately strengthens the competitive position of the DWDM.ME brand as improved performance and reliability of equipment reduces the likelihood of failure in use and increases consumer confidence in the brand.

    Fulfils the requirements of the EMC Directive 2014/30/EU

    Data transmission platforms MU-380-ACDC, MU-70-ACDC, MU180-ACDC of DWDM.ME brand have certificates of compliance with the Low Voltage Directive 2014/35/EU (LVD), which is a “common harmonised safety directive” covering all safety aspects of electrical equipment, not just electrical risks.

    The directive ensures that equipment designed for use within a certain voltage range is safe for users and complies with European legal requirements.
