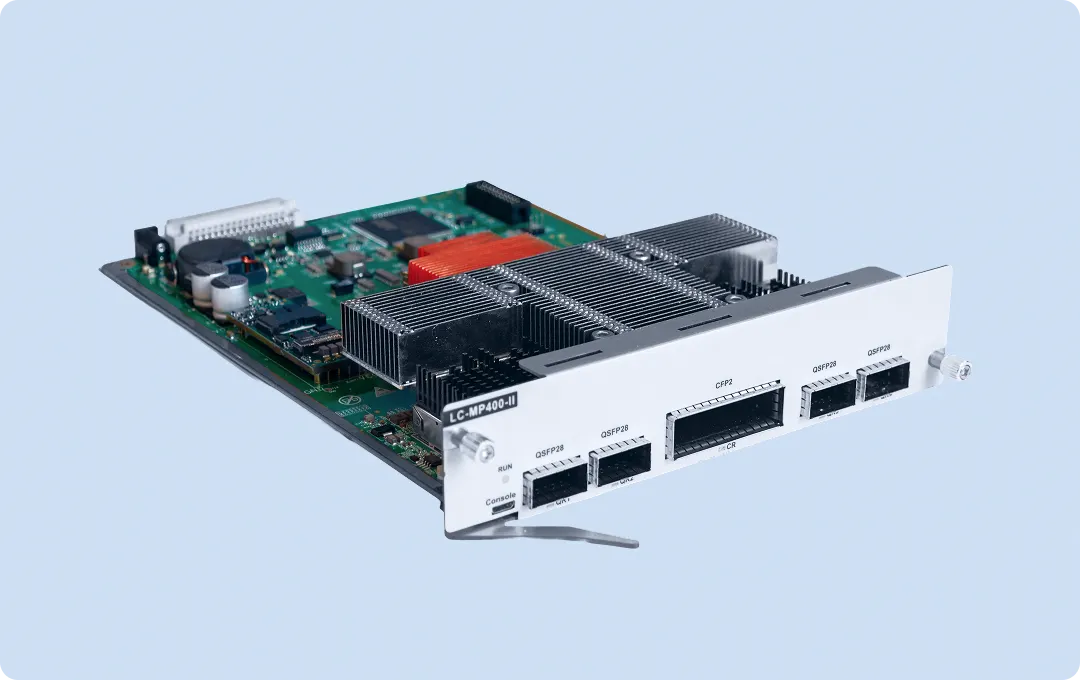

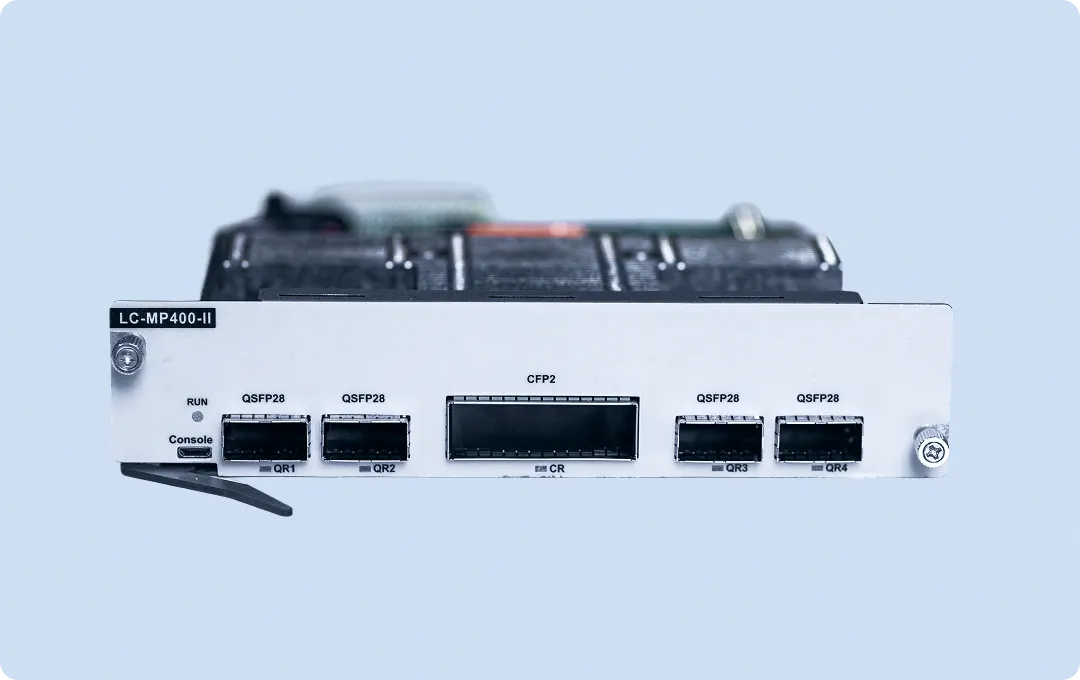

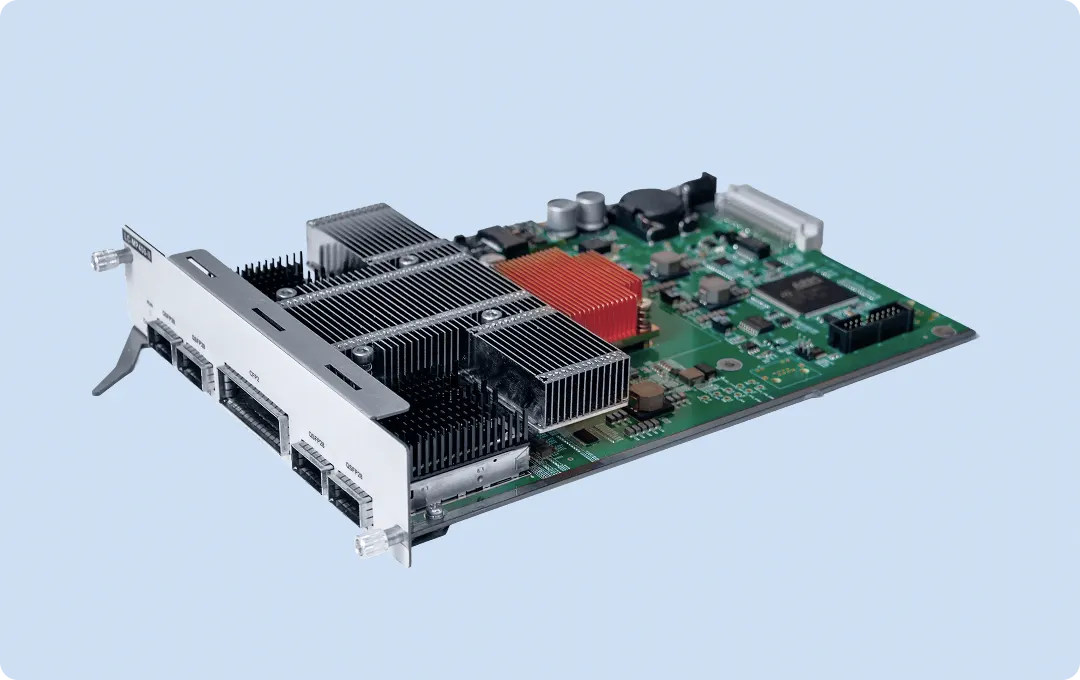

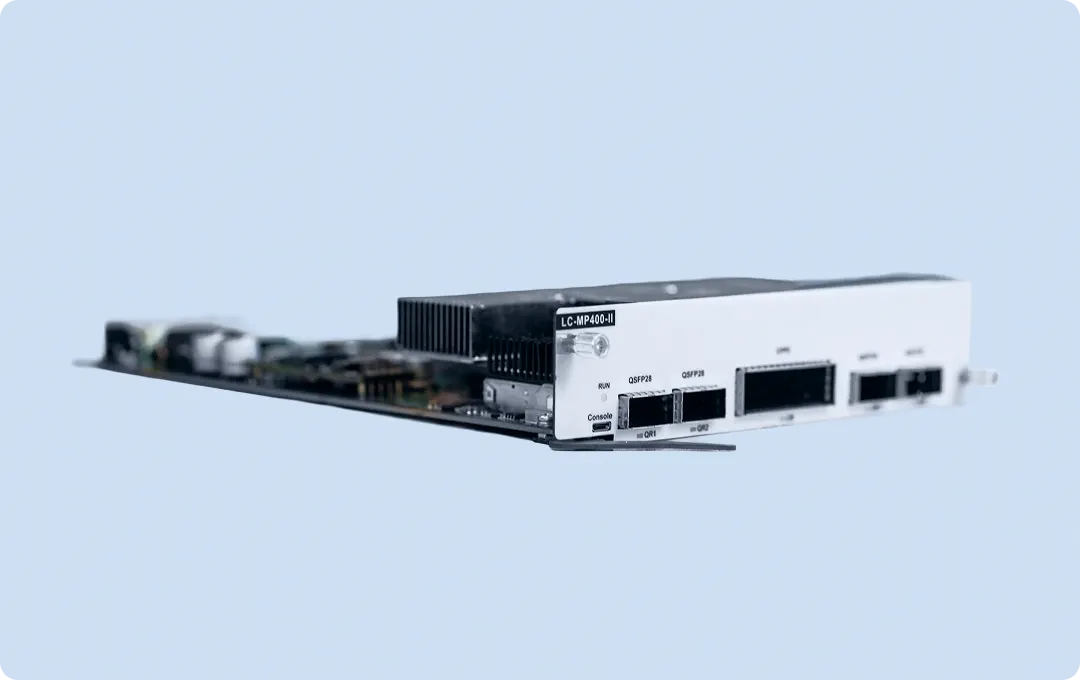

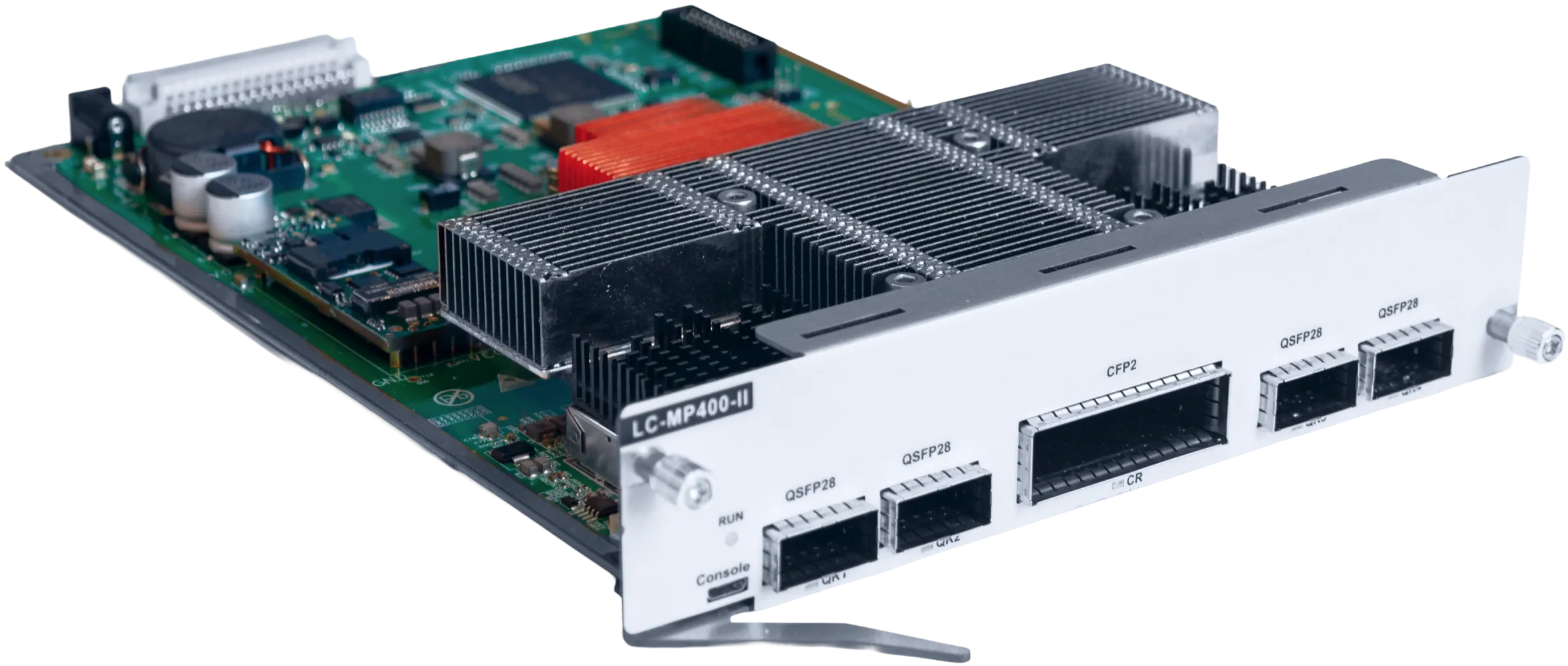

4xQSFP28 to CFP2-DCO 400G Coherent Module Muxponder
The 400G Muxponder Transmitter supports four QSFP28 client interface and one CFP2 line-side interface to support single-channel 400Gbps large-grain data transfers. The industry’s most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission.
DWDM.ME’s 400G Muxponder includes integrated OTN FEC capability on the transponder, allowing operation over longer distances or in applications requiring ultra-low bit error rates.
The 400G Muxponder offer a choice of pluggable QSFP28 Client Side Optics and CFP2-DCO Coherent DWDM Line Side Optics based on distance and capacity requirements.
The Coherent DWDM Optics are the most technologically advanced and offer benefits on dispersion management, signal reach, and other optical properties. Coherent DWDM Optics can greatly increase the capacity and reach of an optical network, The 400G Muxponder models fits for MU Series MU-70-ACDC, MU-180-ACDC, MU-380-ACDC Chassis.
Performance Parameter
Function
- Media conversion
- Signal repeating
- Lambda conversion
Highlight
-
Support single channel 400Gbps -
Client Side: 4x QSFP28 module
-
Line Side: CFP2 400Gbps coherent module
-
Ultra-long-distance transmission: FEC technology can be used to achieve 1000km transmission without regeneration -
Large dispersion tolerance: 20000ps.nm -
Support port loopback test
-
Support 80 channel wavelength tunable
